Reference Projects Mechanical Engineering

Equipment Technology

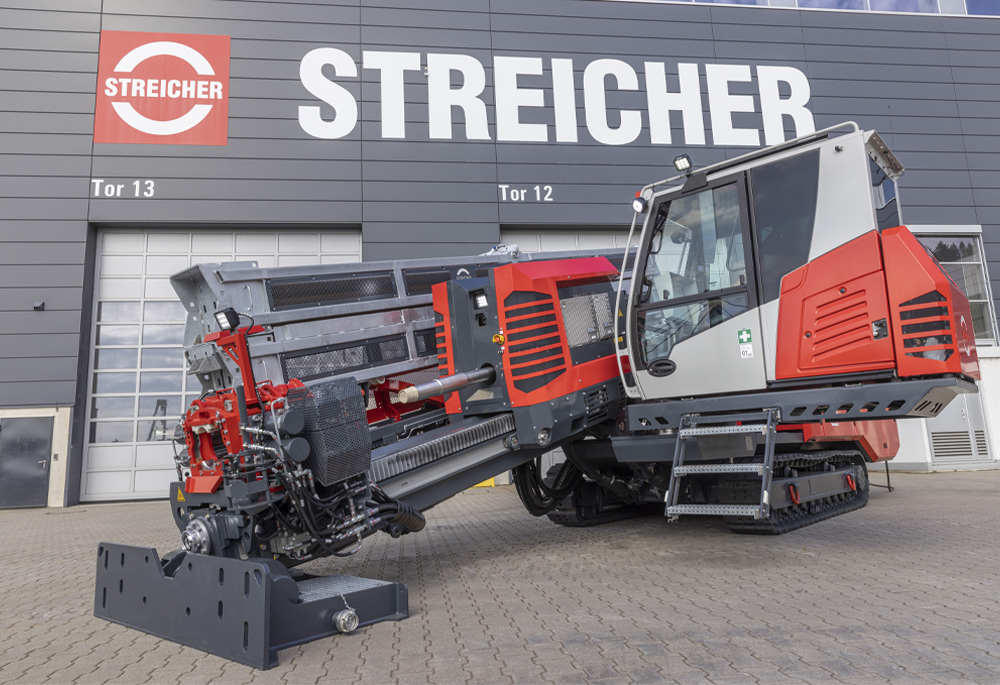

HDD45-E – Compact Horizontal Drilling Rig

  • Thrust / pullback load: 450 kN (45 t); 600 kN (60 t) (boost)
  • Power rating: 250 kVA
  • Transport weight: 28.5 t
  • Dimensions (LxWxH): 11.2 x 2.55 x 3.0 m
  • Ambient temperature: -20 to +40°C

PDF

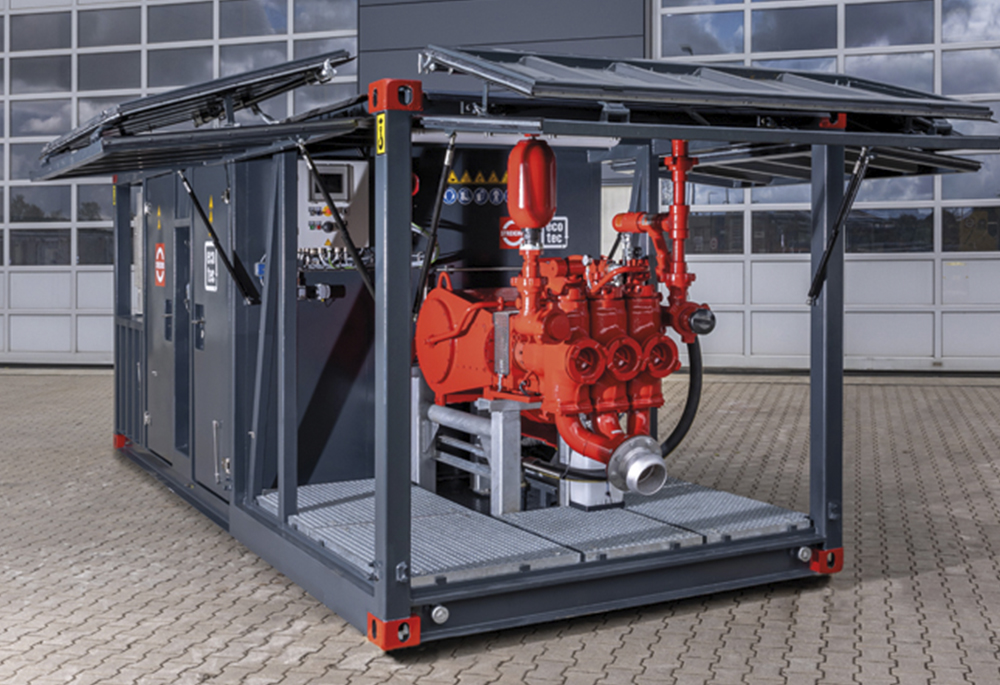

HPP400-E Mud Pump

  • Performance: 315 kW
  • Dimensions container (LxWxH): 6.58 x 2.44 x 2.31 m
  • Total weight: 11.5 t
  • Maintenance operation with 32 A power feed possible
  • CE-certification

PDF

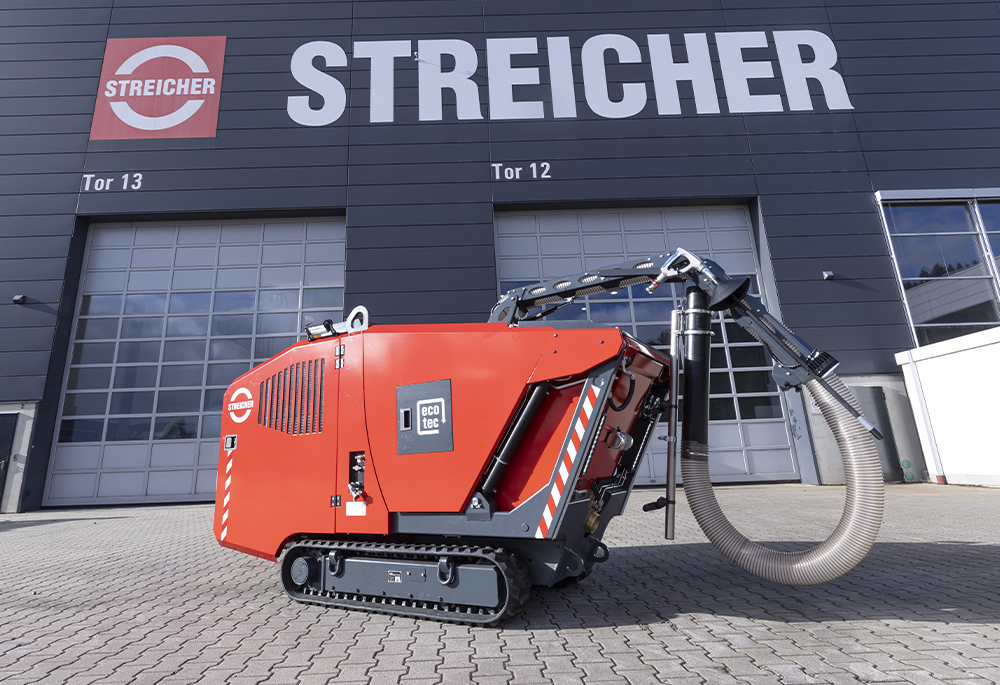

VC70 Vacuum Crawler

  • Performance: 55.4 kW (75 PS)
  • Transport weight: 2.6 t
  • Dimensions (LxWxH): 3.30 x 1.26 x 1.95 m
  • Exhaust emission level: EU Stage 5
  • Ambient temperature: -20 to +40°C

PDF

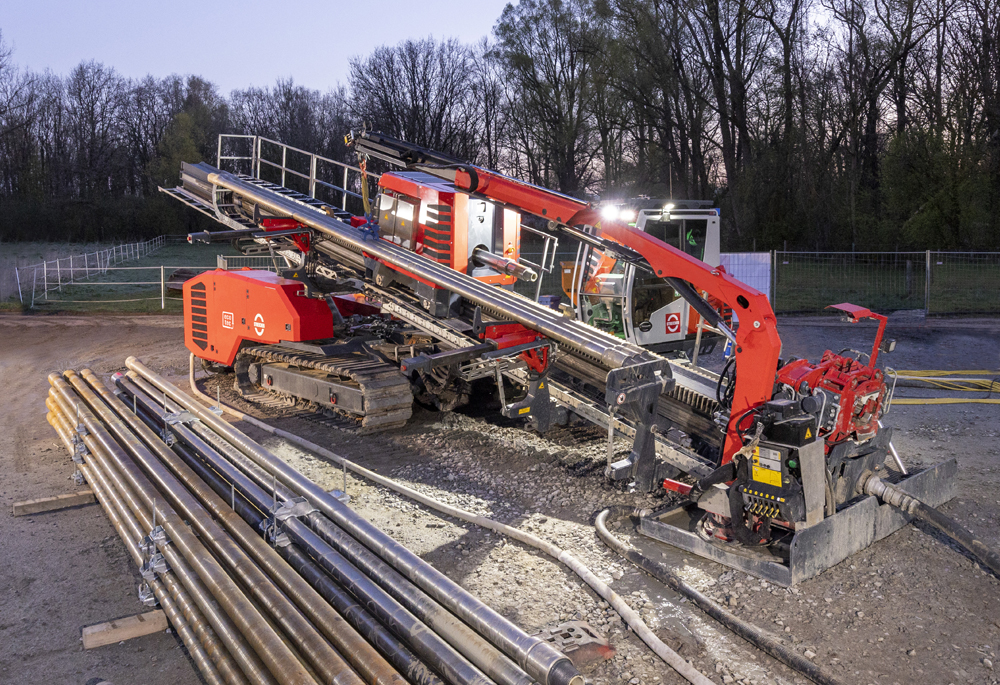

HDD80-E – Fully Electric Driven Horizontal Drilling Rig

  • Thrust / pullback load: 800 kN (80 t); 1,000 kN (100 t) (boost)
  • Power rating: 400 kVA
  • Transport weight: 40 t
  • Dimensions (LxWxH): 15.6 x 3.0 x 3.2 m
  • Ambient temperature: -20 to +40°C



PDF

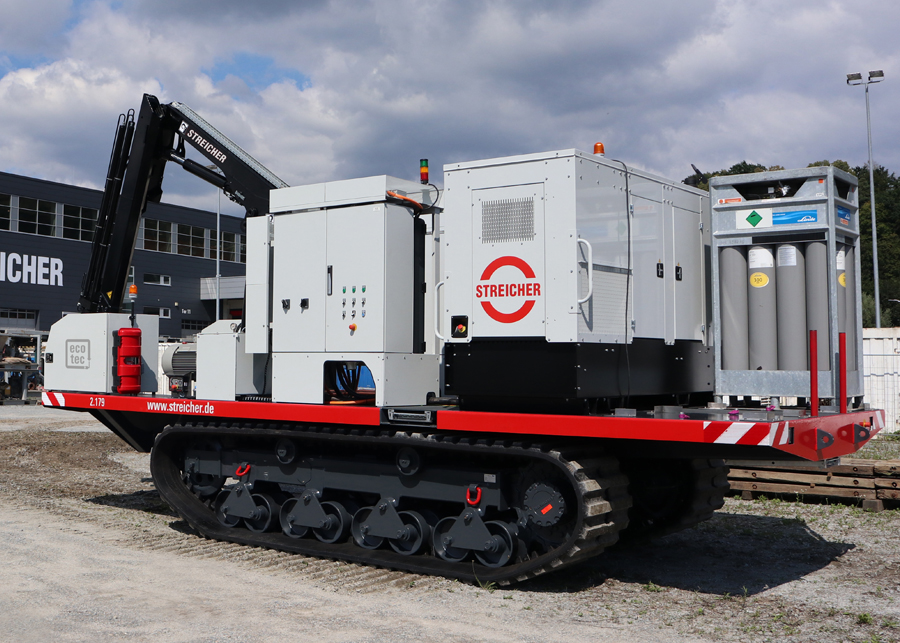

PW150-E – Welding Tractor

  • Dimensions (LxWxH): 7.50 x 2.95 x 3.14 m
  • Transport weight: 17 t
  • Supplementary payload: 2.7 t
  • Ground clearance: 0.60 m
  • Fording depth: 1 m
  • Rotation radius: 0 m
  • Ground pressure: 470 g/cm²
  • Ambient temperature: -20°C up to +45°C

PDF
