Reference Projects Mechanical Engineering

Process Engineering

Laboratory Short Path Distillation Plant VKL 70-4

Laboratory short path distillation plant VKL 70-4

Laboratory unit with 0.4 m² heated evaporator surface
Completely jacketed design for high-melting products

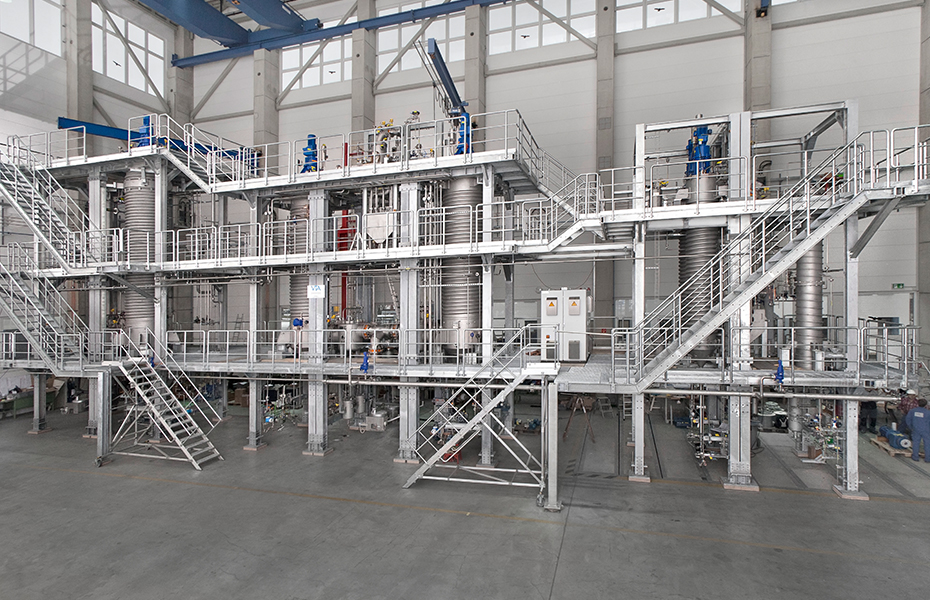

Multistage Distillation Plant for Processing Fish Oil (Omega-3)

Multistage distillation plant

Pesticide (POP) removal, concentration and deodorising
Largest package unit ever built by VTA

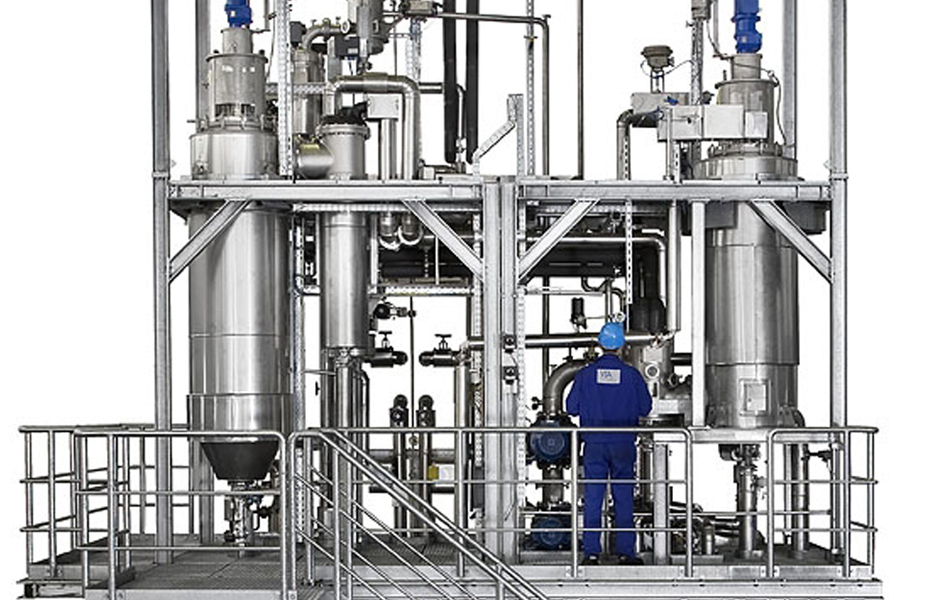

Wiped Film and Short Path Distillation System for Concentration of Pre-polymers

Wiped film

Designed for 200 kg/h throughput
Completely pre-assembled package unit delivered from our facility

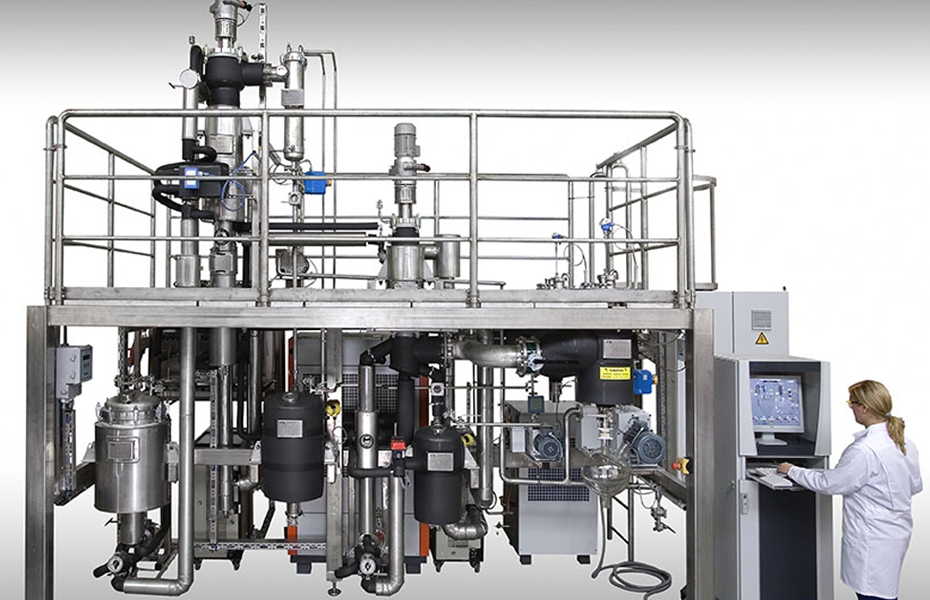

Wiped Film and Short Path Distillation System for Concentration of Natural Extracts

Wiped film and short path distillation system

Designed for 30 kg/h throughput
Operating pressure in wiped film evaporator approx. 1 mbar and 0.01 mbar in the short path evaporator
Complete turnkey delivered unit including process control

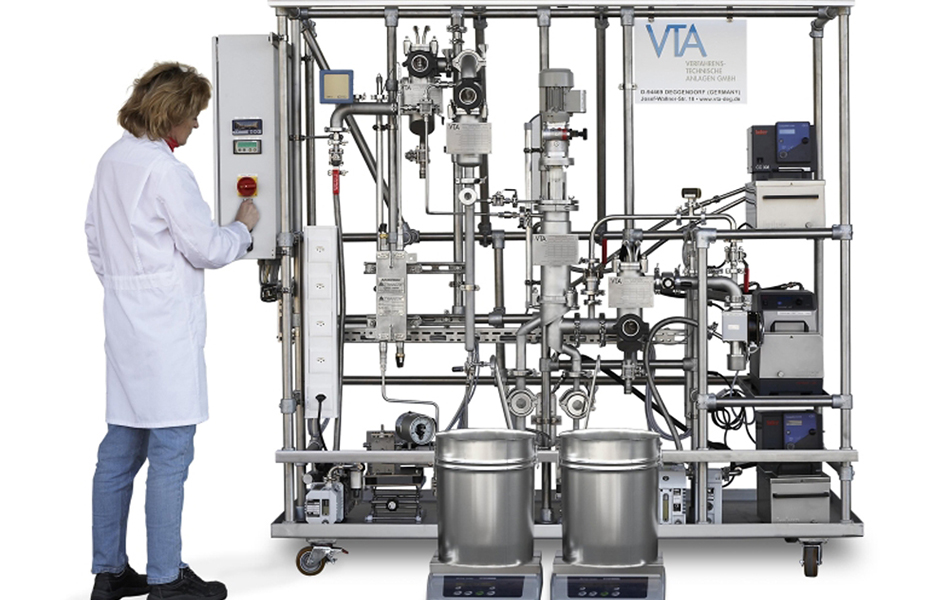

Pilot Short Path Distillation System

Pilot short path distillation system

Unit consisting of a degassing stage and a short path evaporator with 0.06 m² heating surface

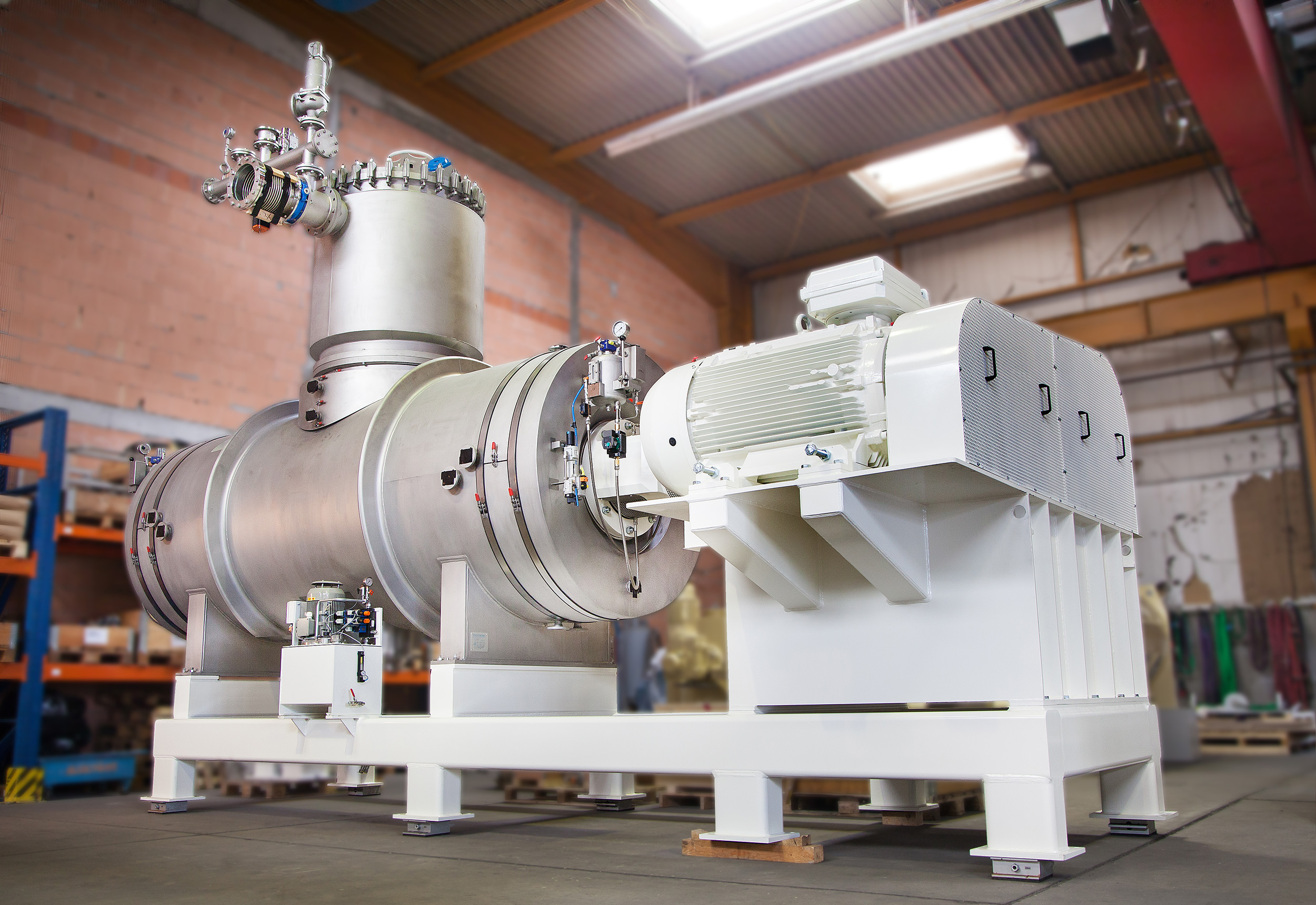

TRIQUENCE® Intensive Mixer Reactor IMR 7500

for chocolate pre-products

TRIQUENCE® Intensive Mixer Reactor IMR 7500
  • Total capacity: 7,500 liters
  • Optimised mass and heat transfer thanks to TRIQUENCE® mixing system: precise and resource-saving reaction control
  • Vapor trap: rapid removal of vapor during phase transition under vacuum
  • Double-acting mechanical seals for shaft sealing
  • Drive power: 250 kW

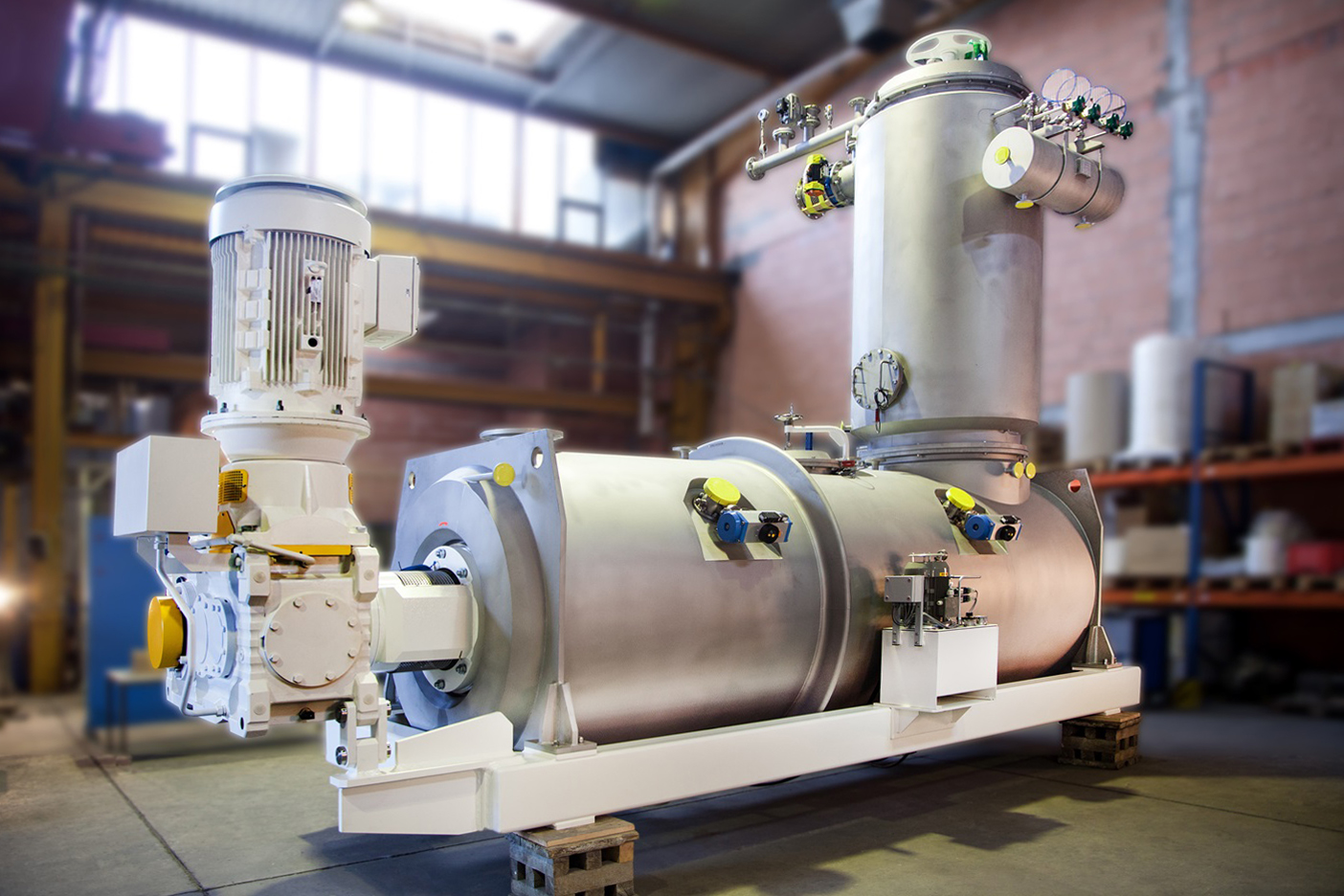

TRIQUENCE® Mixing Dryer IMT 7500

for chocolate pre-products

TRIQUENCE® Mixing Dryer IMT 7500
  • Total capacity: 7,500 liters
  • Optimised material and heat exchange thanks to TRIQUENCE® mixing system: accelerated drying
  • Vapor filter: dust-free removal of vapor
  • Shaft seal: stuffing box packing
  • Drive power: 110 kW

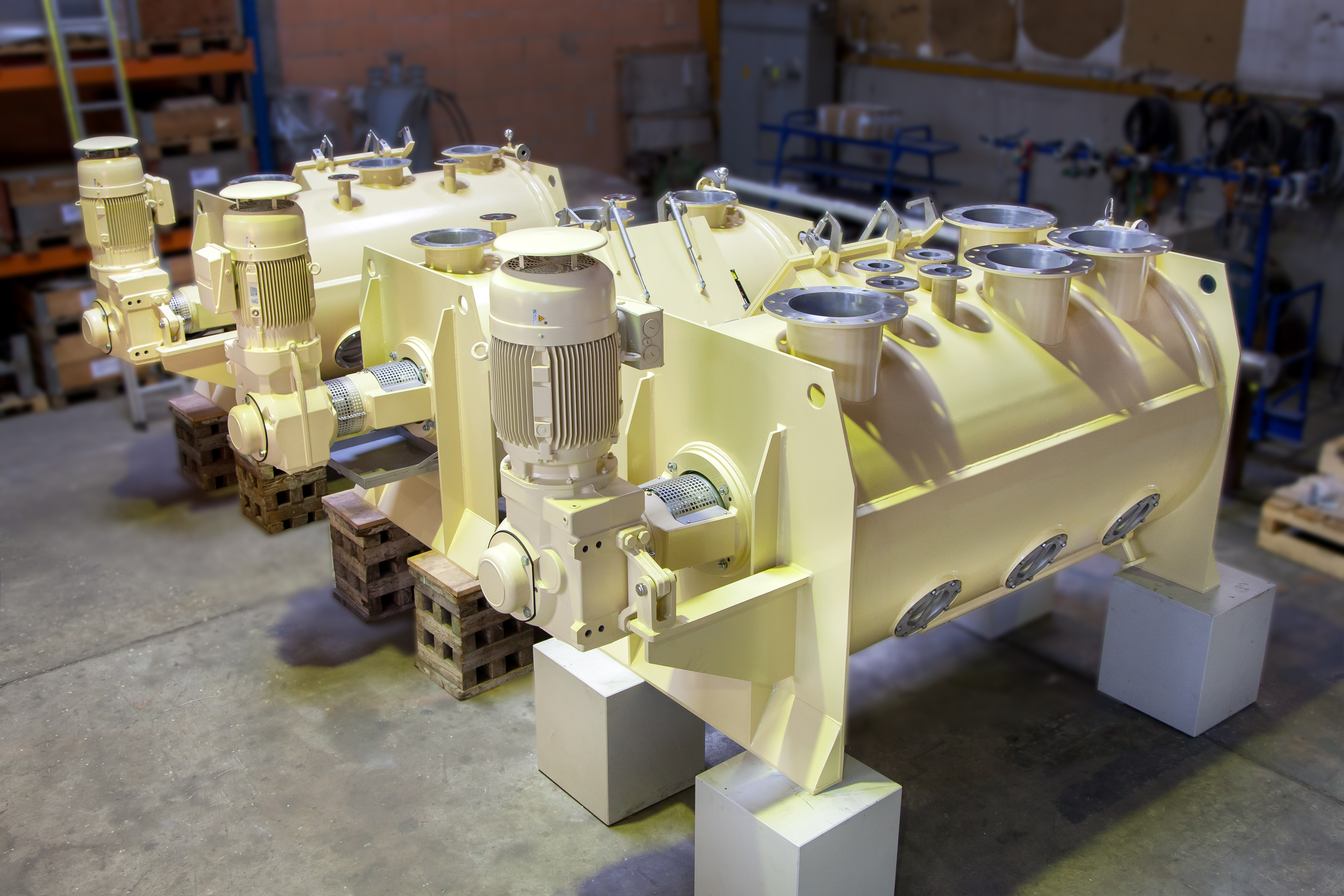

Intensive Mixer IM 2000

for pasting chocolate raw materials

Intensive Mixer IM 2000
  • Total capacity: 2,000 liters
  • Intensive mixing system and completely cylindrical mixing container: very short mixing times
  • Fast emptying: specific mixing elements with close edge clearance
  • Optional: can be retrofitted with the patented vortex chamber for particularly high homogeneity
  • Shaft seal: stuffing box packing
  • Drive power: 22 kW
